“My Dad told me about them!”: Dragon ties

Blog Post
Image of dragon ties in a roof

Dragon tie with simple decorative detail (courtesy of castleringoakframe.co.uk)

When traditional roof construction was the norm, a dragon tie was often incorporated beneath the hip rafter, particularly where they were carrying purlins. The hip therefore had a much heavier load.

The dragon tie could be constructed in a number of ways; from a simple diagonal strut made of timber or plywood fixed to the hip with a metal strap. Or, as shown in the photo, it could be a lap jointed angle tie notched into the hip with an exposed detail.

But what does a dragon tie do?

It prevents the wall plate from spreading where the load transferred down the roof is at its greatest. A dragon tie is very effective as it creates a mechanical joint where everything pulls against one another to reinforce the corner.

You may recall the changes to Building Regulations Approved Document Part A (structure) in 2004 which introduced additional controls for re-roofing work where loads were increased by more than 15%.

This was as a direct result of problems in the 1990’s caused by re-covering slate roofs with newer concrete roof tiles. The extra weight caused the wall plate to be pushed out, usually together with the top three courses of masonry, as the roof started to spread with the additional weight.

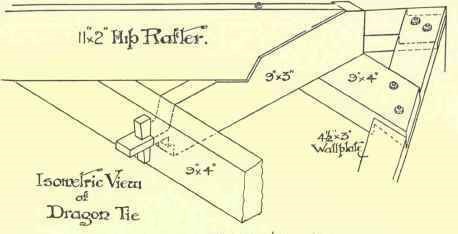

Diagram of a dragon tieA long history

The dragon tie technology developed in the 16th Century (diagram courtesy of chestofbooks.com) alongside timber frame construction, stood the test of time long before this issue arose. It’s still seen today as a feature detail in green oak construction, particularly where the roof carcass is exposed internally.

Browse our "My dad told me..." articles



Please Note: Every care was taken to ensure the information was correct at the time of publication. Any written guidance provided does not replace the user’s professional judgement. It is the responsibility of the dutyholder or person carrying out the work to ensure compliance with relevant building regulations or applicable technical standards.

Comments

(No subject)

Submitted 6 years ago

When I started work as a trainee draughtsman in architecture at 16 in 1955 my employer a Mr McDermott sent me out weekly to make sketches of various types of construction. I remember one of them being to go to a particular site and find out what a Dragon tie does and sketch its details.

(No subject)

Submitted 6 years ago

I'm a 63 yr old joiner always have used dragon ties, you can feel the difference in a structure without one , many the times I have had to insert them into traditional 1920's terraced outrigger corners, may this method carry on forever , it has stood the test of time for centuries.

Dragon Ties

Submitted 4 years 3 months ago

Often see this retrofitted to hipped 1930s roofs where the purlins are just spiked to the jack rafters and thus offer no real stiffness.

Webmaster note

Submitted 6 years ago

All comments posted at an earlier date to this one have been transferred from our old website.

Dragon tie

Submitted 1 year 8 months ago

The term started off as 'dragging tie' which makes sense as the purpose is to drag the wall place back in from being pushed out by the lateral thrust from the hip rafter.
